Overflow box with a return pump versus a canister

An overflow box with a return pump is usually the better choice when you want a sump, hidden equipment, flexible filtration, and room to expand. A canister filter is usually the simpler choice when you want a self-contained system that can be installed without a sump or major plumbing changes.

Neither setup is automatically better. The decision comes down to installation, maintenance, flow control, noise, power-outage behavior, and the type of aquarium you are building.

Quick comparison

How the two systems work

Overflow box with a return pump

An overflow carries water from the display tank down to a sump. The sump holds filtration media and equipment, while a return pump sends filtered water back to the aquarium.

An overflow system can be based on:

• A drilled tank with an internal overflow and bulkhead plumbing
• A hang-on overflow box that siphons water over the tank rim
• A sump with mechanical, biological, and chemical filtration sections

The return pump’s advertised flow is not the same as the flow you will receive at the tank. Head height, elbows, valves, plumbing diameter, and the pump’s operating curve all affect actual output. Select a pump using the manufacturer’s flow information at the required head height rather than relying only on the zero-head rating.

An overflow and sump also require enough empty space to hold water that drains from the display and plumbing when the pump stops. The return line should be positioned or drilled with an anti-siphon arrangement according to the equipment manufacturer’s instructions. Test the system with the pump unplugged before leaving it unattended.

Canister filter

A canister filter is a sealed external filter. An intake hose draws water from the aquarium into the canister, where it passes through mechanical, biological, and optional chemical media. A return hose sends the water back to the display.

Canisters are generally easier to add to an established aquarium because they do not require a sump or overflow. They can also provide substantial media capacity without taking up much space inside the tank.

The flow rating on a canister is commonly measured under conditions that may not match a fully loaded filter installed on an aquarium. Media blockage, hose length, bends, and intake height can reduce flow. Treat the published rating as a comparison point, not a guaranteed in-tank turnover rate.

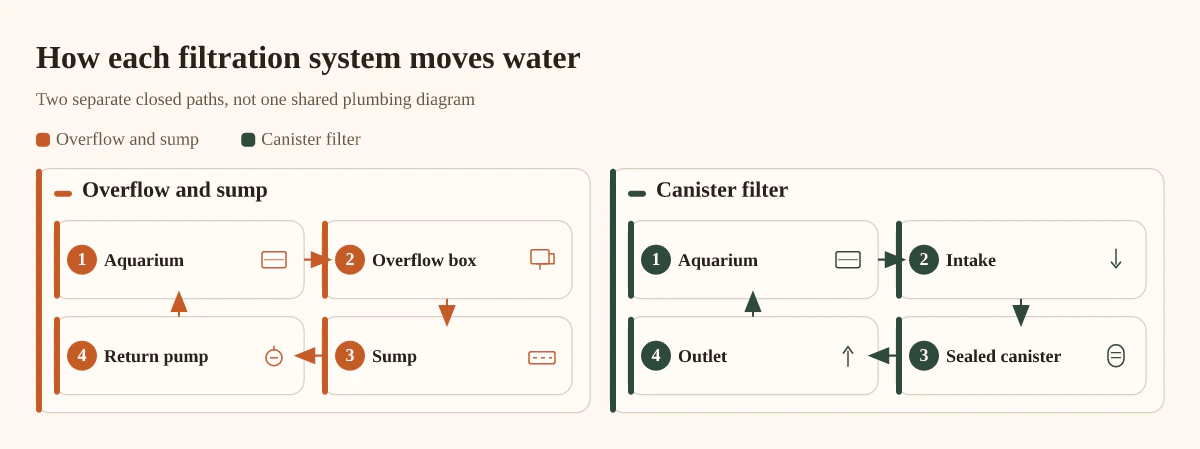

Diagram description

Overflow and sump loop: aquarium to overflow box to sump to return pump back to the aquarium. Canister loop: aquarium to intake to sealed canister to outlet back to the aquarium. The two paths are separate, not one shared plumbing diagram.

Which setup is easier to install?

A canister is usually easier. You need a suitable location below or near the aquarium, the correct intake and return fittings, and enough hose to make the connections without sharp bends. Priming is typically required, so follow the filter’s instructions carefully.

An overflow and return system takes more planning. You must account for:

• Tank compatibility with a drilled or hang-on overflow
• Sump size and water-level operating range
• Drain and return plumbing
• Return pump capacity at the actual head height
• Unions or valves for maintenance
• Emergency-drain planning where applicable
• Power-outage drainage and restart behavior

A drilled tank and professionally planned plumbing can be dependable, but drilling a filled or unsuitable aquarium is not a casual modification. If you are uncertain whether a tank can be drilled or how to size the plumbing, consult the tank manufacturer or a qualified aquarium professional.

Which provides better filtration flexibility?

The overflow-and-sump approach generally wins for flexibility. You can dedicate separate sections to filter socks or other mechanical media, biological media, chemical media, a heater, an auto-top-off sensor, a protein skimmer, or other equipment that is compatible with the system.

A canister still offers useful media flexibility. You can choose coarse and fine mechanical media, biological media, and optional chemical media. However, the internal baskets and flow path determine how much media you can use and how easily you can change its arrangement.

For either setup, avoid packing media so tightly that water bypasses it or the pump starves for flow. Mechanical media needs regular cleaning because trapped debris can restrict flow and become a source of nitrate or other unwanted buildup.

Which is easier to maintain?

This depends on the maintenance you prefer.

A sump makes individual equipment accessible without removing a large filter body from beneath the tank. You can often clean mechanical media, inspect the return pump, and adjust equipment while the display remains relatively undisturbed. The tradeoff is that you must maintain the sump, overflow, drain, return pump, and plumbing.

A canister has fewer system components, but service can be more involved. Cleaning commonly includes shutting off the valves, disconnecting the hoses, opening the canister, rinsing media appropriately, cleaning the impeller, and checking seals before restarting it.

Do not rinse biological media under untreated tap water if doing so could damage the beneficial bacteria you are trying to preserve. Use aquarium water or follow the media manufacturer’s instructions. Replace or clean mechanical media based on its condition rather than waiting until the filter’s output has already dropped sharply.

Noise considerations

Either system can be quiet when correctly installed, but the sources of noise differ.

An overflow system may produce noise from falling water, air entering the drain, vibration from the return pump, or an incorrectly adjusted water level. Flexible tubing, proper supports, and a correctly designed drain can reduce vibration and splashing. Do not restrict a drain in a way that creates an unsafe backup risk.

A canister may produce noise if air is trapped inside, the impeller is dirty or damaged, the unit is not level, or the intake is drawing air. A humming sound can also come from vibration against a cabinet or stand.

If quiet operation is a priority, consider the entire system—not just the pump or filter rating. A high-flow setup with poorly supported plumbing can be louder than a lower-flow system that is correctly sized and maintained.

Power outages and overflow safety

This is the most important difference for many buyers.

When power stops, a canister usually stops circulating water. Depending on the hose arrangement, the intake and return may still hold water, but the system generally does not require a sump to receive draining display water.

With an overflow and sump, water can continue draining until the display water level falls below the overflow or the siphon breaks. Water may also drain backward through the return line. The sump must have enough unused capacity to hold this water without overflowing.

Before operating an overflow system unattended:

1. Fill the aquarium and sump to their normal operating levels.
2. Unplug the return pump.
3. Watch how much water drains into the sump.
4. Confirm that the sump does not overflow.
5. Restart the pump and check that it returns to normal operation.
6. Repeat the test after any plumbing, water-level, or return-nozzle change.

Use the overflow and pump manufacturer’s instructions for emergency drains, siphon breaks, and valve placement. If an overflow repeatedly loses its siphon or a sump cannot safely contain backflow, correct the design before relying on the system.

Which is better for reef or heavily equipped aquariums?

An overflow with a sump is usually the more expandable choice for a reef aquarium or a system with several pieces of equipment. It can make it easier to hide heaters and probes, add a compatible protein skimmer, increase media capacity, and separate equipment from the display.

A canister can work for some reef or marine aquariums, but it may require more frequent mechanical-media cleaning to prevent trapped organic waste from accumulating. It also does not provide the same equipment space or plumbing flexibility as a sump.

For freshwater aquariums, either option can work. A canister is often attractive for planted or community tanks where simple external filtration and a clean display are priorities. A sump becomes more appealing when the tank is large, heavily stocked, or likely to gain additional equipment later.

Which should you choose?

Choose an overflow box with a return pump if you:

• Want a sump-based filtration system
• Need room for heaters, probes, skimmers, or extra media
• Are setting up a reef or larger aquarium
• Want to expand the system later
• Are comfortable planning plumbing and testing outage behavior

Choose a canister filter if you:

• Want installation without a sump
• Need a practical option for an established tank
• Prefer fewer plumbing components
• Want substantial external media capacity
• Do not need to hide several pieces of equipment

A canister is not a substitute for a return pump and sump, and an overflow system is not simply a larger canister. They solve the filtration problem in different ways. If you want the lowest installation complexity, start with a properly sized canister. If you want an equipment platform that can grow with the aquarium, plan the overflow, sump, and return system carefully.

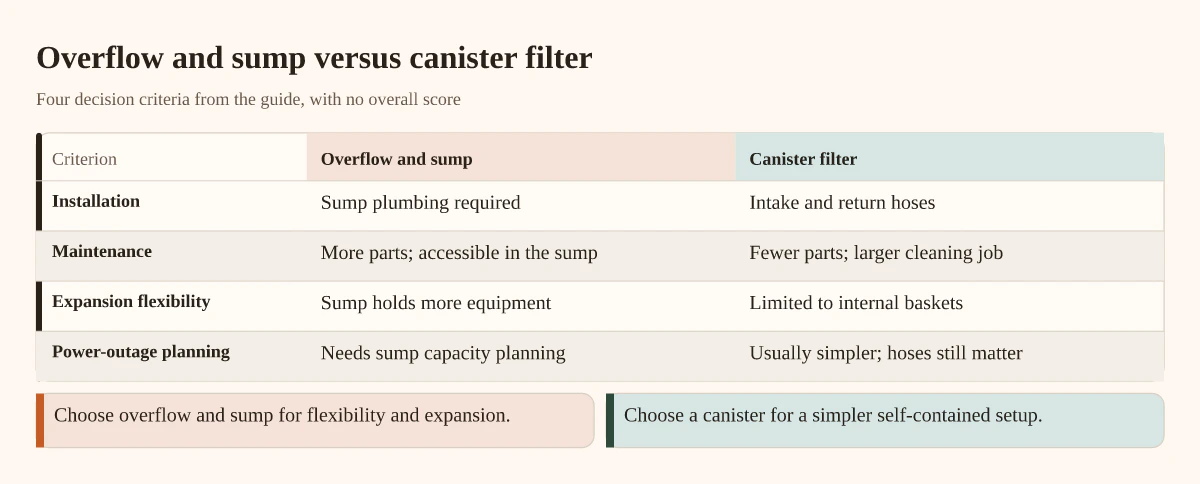

Diagram description

Overflow and sump needs sump plumbing, has more parts that stay accessible in the sump, holds more equipment, and needs sump capacity planning during a power outage. A canister uses intake and return hoses, has fewer parts with a larger cleaning job, is limited to internal baskets, and is usually simpler in an outage though hoses still matter.

Troubleshooting common problems

Weak flow from either system

Check the filter media first. A clogged prefilter, sponge, floss pad, or intake screen is a common cause. Then inspect the intake and return hoses for kinks, trapped debris, or buildup. Check that valves are fully open and that the water level is high enough for the pump or intake to operate correctly.

For a return pump, compare the system’s plumbing height and fittings with the pump’s published flow curve. A pump that is adequate at zero head may be inadequate once installed.

Gurgling or splashing from an overflow

Check the water level, drain configuration, and air entering the drain. Confirm that the overflow is installed and adjusted according to its instructions. Do not silence a drain by restricting it in an unsafe way. Persistent gurgling, unstable water levels, or a siphon that does not reliably restart should be corrected before normal use.

A canister is noisy after cleaning

Check that the canister is level, the lid is seated correctly, and the hoses and valves are fully connected. Air trapped in the canister can cause rattling or gurgling. Clean and inspect the impeller and its well, following the manufacturer’s instructions. Replace a worn seal, impeller, or hose if inspection shows damage.

Water is leaking

Turn off the affected pump and protect the electrical connection from water. Inspect hose connections, bulkheads, O-rings, clamps, and the canister lid seal. Do not keep operating equipment with a leak that cannot be identified and corrected. Replace the appropriate seal or fitting if damaged; replace the unit or plumbing component if its housing, bulkhead, or body is cracked.

The system does not restart after a power interruption

For a canister, check that the intake is submerged, the unit is properly primed, and the impeller is free of debris. For an overflow system, confirm that the overflow has resumed its intended flow and that the return pump is not running dry. Never allow a return pump to run without adequate water around its intake. If an overflow cannot restart reliably, stop using it until the cause is fixed or the system is redesigned.

When replacement makes more sense

Replace a canister when its housing, lid, motor head, or hose connections are cracked, warped, or repeatedly leaking, or when replacement parts are unavailable. Replace a return pump when it has persistent electrical or mechanical faults, overheats, or cannot maintain the required flow after cleaning and correct setup.

If an overflow box repeatedly loses siphon, cannot handle the aquarium’s flow safely, or leaves no practical margin for power-outage drainage, replacing or redesigning the overflow system is safer than trying to compensate with improvised restrictions. Disconnect power before servicing aquarium equipment, keep electrical connections protected from water, and defer electrical repairs to a qualified professional when the cause is not clear.
